Engineering Disasters: The Demise of the Ocean Ranger

The Ocean Ranger was, in its day, the largest Mobile Offshore Drilling Unit in the world. One toolpusher called the rig "unsinkable" (note to anyone offshore- if it floats, it can sink). The loss of the Ocean Ranger was one of the biggest disasters in the history of the oil industry.

The Ocean Ranger, owned by ODECO out of New Orleans, was under contract by a Mobil subsidiary off the coast of Newfoundland. A ferocious storm came up. After bracing for the storm, the men aboard thought they were safe, but a rogue wave smashed a porthole and flooded the ballast control panel. Between an under-trained crew and a serious design defect, the platform capsized in heavy seas that it should have been able to handle.

Some of the crew was washed into the water. Some got into lifeboats that were ripped to shreds as they were lowered. One boat, however, with approximately 20 souls made it down safely. A crewboat on standby at a nearby rig made a heroic effort to save the men in the water, but the frigid waters incapacitated the men in the water in seconds. ODECO deemed it too expensive to equip the rig with survival suits. The men on the crewboat, despite their best efforts, had neither the equipment or the training to rescue unconscious men from the heavy seas.

The one intact lifeboat was found by the M/V Seaforth Highlander. The crewboat lashed lines from the lifeboat and the men on board were just a couple of feet from safety, however the lifeboat depended on the men on board staying strapped into their seats for ballast. The lifeboat slowly capsized. All the men were washed into the water. The captain of the Seaforth Highlander described it as "watching a slow motion movie." All the men in the lifeboat were quickly overcome by hypothermia and drowned.

Every single crewman aboard the Ocean Ranger died. Only couple of dozen bodies were ever recovered, despite extensive search efforts.

The USCG Board of Inquiry [PDF] describes the incident in much, much more detail. I highly recommend it.

The USCG report comes up with a number of findings. A few I'll mention briefly:
* Insufficient training. Ballast Control crewmen only had basic, on the job training. They had no classroom training and didn't understand the working principals of the pumps. The ballast system also went into a "safe" mode in case of failure whereby all ballast compartments are sealed. It appears that the crew misunderstood a bypass system and unintentionally worsened flooding.
* The crew of the Ocean Ranger didn't call for help until it was deep into the storm. Once they did abandon ship, the Ocean Ranger actually stayed afloat for at least another hour. The crew died while the rig was still afloat.
* There was a critical design flaw that was completely missed by the designers and regulatory bodies: the chain lockers, storing the anchor chain, were open to the sea and un-sounded. The crew had no way of knowing if the chain lockers, an enormous void that could cause the rig to list or capsize if filled, had water in them. They had a 5' hole at the top for the chain to enter that had no way of closing off or sealing from the weather.

Inviting Disaster (thanks for the rec, PE) has a chapter on the Ocean Ranger. It closes with one interesting observation. The Ocean Ranger had drilled in the Baltimore Canyon off the East Coast. It drilled off the coast of Ireland. It drilled offshore Alaska. It had just begun drilling off Newfoundland. The largest, most advanced drilling rig of its day never once struck oil.


Couple notes to tack on the end:

* Here's an archive of Canadian news broadcasts about the sinking.

* Ocean Ranger had a sister ship. It was originally named Ocean Ranger II, but was renamed Ocean Odyssey while still in the shipyard. It suffered a well blowout that ended its oil drilling days. It now serves as a satellite launch platform as a part of the Sea Launch system. It's still operational, despite one rocket that blew up on launch.

Wednesday, September 23, 2009

"Oil that is, black gold, Texas tea."

UPDATE: More links to add.

Help! They Can't Find Any More Oil!

International oil and gas companies increased exploration spending by 21% in 2008 to $492 billion, but worldwide oil and gas reserves were .4% lower by year end. There was a 4.4 billion barrel decline in oil reserves. This isn't a singular event, either. Over the past three years reserves have been flat.

Related: | FT Energy Source | Finding new oil gets ever more expensive ...One significant finding of the study: in the US, reserve replacement costs more than doubled [in a single year].

Science Links of the Day - 23 Sept 2009

Start with a cool video:

An illustration of gyroscopic stabilization.

Secrets of the Gun that Shelled Paris. From an old issue of Popular Mechanics. Don't you wish newspapers and magazines covered science like this today?

RNA produced from "Primordial Soup". Wow. Maybe we can get some of that evolution around here: Too evolved for US audiences?

Costly [British] libel suits are stifling science. Perhaps the starkest indication that parliament needs to examine our libel laws is that American legislators are acting to block them. They recognize that free speech in America is compromised because US journalists have been dragged into an English libel court (so-called “libel tourism”) and forced to back down because of the high costs involved. Congress is considering a bill, which has already been passed by the state of New York, that would make English judgments on libel unenforceable in America.

Fined: for not producing enough garbage. Bike Mechanic Too Efficient. A standard monitoring tactic was used, but with no appeal process, there's an automatic fine for "green" mechanic.

"Catch more flies with honey than vinegar?" - Not so much: To get rid of fruit flies, which are so plentiful this time of year, fill a small dish with about a half a cup of cider vinegar, and add a drop of dishwashing liquid. The cider vinegar gives [off] fumes similar to spoiling fruit, which attracts the flies, while the dishsoap breaks the surface tension. Flies land, flies drown, no more flies! It works like a freakin’ charm, it does. Plus, there’s a morbid sense of satisfaction, seeing how many you can catch in a single day.

Synthetic Humans? On average, one-half of the nitrogen in a human body is synthetic, the product of one of a Haber-Bosch plant.

First ships navigate Northeast passage. 2 German merchant ships, escorted by Russian icebreakers, are navigating Europe-Asia shortcut. Could it be the first time in 5,000+ years the channel is regularly ice-free?

What does space smell like? After reentering the shuttle airlock, a strange smell lingers from space...

Niel DeGrasse Tyson takes on "Intelligent" Design:

Friday, September 18, 2009

"Nondislocated Fracture of the Distal Fibula"

I made it to 25 years old before I had my first broken bone. We were planning on going to Herbsaint tonight and we're going anyway, broken ankle be damned.

UPDATE- Went to Herbsaint. Had a hell of a meal. We did the French tasting menu. It consisted of a salt cod/potato/frisee/lobster dish that was fantastic. The Trout Almondine was completely different from any other dish I've ever had in New Orleans. Instead of the traditional Creole Almondine, with its heavy, creamy sauce, this was very light. It almost wasn't there and it added a lot to the dish. The Ratatouille was good, but I like my version a little better. The point of the tasting menu was to do the dishes like they do in the South of France. I love stinky cheeses, but the blue cheese that was selected was too much for me. It tasted like gym sock. Desert more than made up for it, though. It was a "Breton Butter Cake" (think about a croissant, covered in even more butter, turned into a cake). Delicious.

Staff was also pretty cool about the crutches and all. Great service. Great sazerac, as usual.

Thursday, September 17, 2009

Maria Garzino Interviewed by Harry Shearer

Harry Shearer interviewed Maria Garzino, the whistle-blower who first pointed out how flawed the M.W.I. pumps were. I listened to the show and took notes and just wanted to share a few random observations. You can listen to the interview for yourself here (Sunday Sept. 13th Show).

Ms. Garzino did give a few conflicting statements over the course of the interview, but not an unreasonable amount, given it was a 30 minute interview on a technical subject.

* An error on the ACOE pump support structure drawings caused the pumps to be installed with 2' less of NPSH(a) than the pump impellers were trimmed to. Ms. Garzino thought it was not an unusual error, given the complexities of the project. It took a while to correct, but it eventually was fixed.

* The "battle test" that the ACOE is so proud of for the M.W.I. wasn't much of test at all. SCADA data shows that the M.W.I. pumps were only run once the heavy lifting was done by the direct drive pumps. For background, all major industrial equipment is controlled by Programmable Logic Controllers (PLC's). These primitive, reliable computers communicate to each other through several different protocols, one of which is SCADA. It's still a little hard to get definitive evidence, but it seems to be backed up by the runtime reports at the back of the Parsons Report (Table 3-10, etc.).

* One of the serious design flaws that kept the M.W.I. pumps from being successfully tested was air getting into the hydraulic pumps. In the M.W.I., diesel engines turn a hydraulic pump. That hydraulic pump pressurizes fluid that runs through lines to a hydraulic motor. The motor turns the impeller blades that moves the water. The reservoir that fed the hydraulic pumps was mounted incorrectly, causing air to carry into the hydraulic pump. Air in a hydraulic pump bad, on a good/bad scale. It tore the guts out of the hydraulic pumps. The reservoirs were mounted higher, to avoid air undercarry. That solved that particular problem.

* Maria Garzino then described the various stages of whistle-blowing she went through. She brought it up with various folks within the Corps. After she exhausted internal appeals, there was an Internal Technical Investigation by the Corps. I believe that was done by the Vicksburg office. She said the report was nice and all, but it didn't set its own scope and didn't really address her concerns. The Parsons Report followed on with more or less the same issues. Finally, the Office of Special Council hired their own technical advisers, went through all the reports and basically agreed with her over the Corps. Here's a letter [PDF] that describes a little more about the OSC report.

* Another issue she went through is how her actions changed some of the Corps plans. The Corps was, at one point, planning on re-using the M.W.I. pumps in the permanent pump stations. Later, the Corps decided that the M.W.I. pumps were only temporary. I don't know if there's any way of knowing whether the Corps had the original intent of using the Corps for the permanent stations, but I can say that they got lots of pushback from all sorts of sources when they discussed re-using the M.W.I. pumps. Mrs. Garzino's actions may or may not have contributed in the change of plans.

* The Corps has a developed a "How To" manual for reworking the Interim Closure Structure (ICS) into a permanent facility. The price tag on ripping out the M.W.I. pumps and replacing them with direct drives is approximately $275 million dollars. According to Ms. Garzino, the original estimate that the Corps submitted to Congress included a 50-year design life for the ICS. Spending $275 million after you told Congress that what you built had a 50-year design life is a waste of money. It's not completely an apples-to-apples comparison, but I think it's still useful to mention that large offshore oil structures have a design life of 35 years.

I listened to the radio interview to make some sort of judgment on Ms. Garzino's credibility. I listened like a hawk and took notes and while there were some contradictory statements, her interview taken as a whole leaves me to conclude her story is quite credible. All of her major assertions check out.

UPDATE- More things are coming to me in bits and pieces:

* The Corps really moved the chains for M.W.I. to pass the tests. Some of the moves were no big deal, but others were not legitimate. When competitively bidding contracts, you have to hold the winning bidders to what they said they'd do, especially with regards to testing. It violates ethical engineering practices and its unfair to the losing bidder. I understand the Corps' complaint (that they were under the gun for time), but the Corps is not the first entity in the world to face a looming deadline for a major, complicated project. If the Corps asked for testing the pumps, M.W.I. should have had a line item of a few thousand per pump for testing. If they didn't and they won the bid because of that, they should be forced to eat the difference. Remember, there's hardly ever only one vendor that can provide a piece of equipment or service.

* Verifying the pumps against their curve (making sure they work as the salesmen claim) is an important step. Hydraulic Institute standards state no worse than +/- 5% of the curve. Hydraulic Institute standards are MINIMAL; I can tell you that most clients I've dealt with have much more stringent standards on the pumps they test. If it's just a $50,000 pump or so, you're probably not going to bother testing it. Millions of dollars worth of pumps? You're going to get them tested. For critical systems, like de-ballast, firewater, etc. you're going to test the pumps to the Nth degree with a good chance of additional factory inspections.

* M.W.I.'s salesmen may have made excessive claims, but its the duty of the engineers not to just take them at their word and verify what they say. I worked on a job about a year ago where an engineering company bought some pipe for a pump discharge that wasn't pressure rated. I talked with the engineer and he said the salesmen said it was "an ideal application." I talked with the salesmen and he he told me it meets certain AASHTO, etc. specifications. I looked up those specs and the first thing they say is that these standards are meant for non-pressure rated pipe. The ratings the specs give were minimal 20 foot of head (~10 psig) ratings that should never have led an engineer to use them as force-mains. It's the engineer's job to run these things down.

Envying Norway

For one example of what Louisiana COULD be, if we had effective political leadership, look to Norway.

Norway's oil-fueled socialist government was recently reelected. The margin was thin, but its first time a government is reelected in years. The Norwegians have figured out that politicians are like diapers and should be changed often for exactly the same reason.

Norway is an extremely advanced country built up by strong social values (which go back to having to prepare as a group for fierce winters) and a robust oil industry. Oil is almost always a curse, when it comes to economic development. One of the terms commonly used is Dutch Disease, where oil riches cause all other sectors of the economy to shrivel. In Norway, the oil industry has helped out a lot of other industries. Most of the early multiphase flowmeters were developed in Norway. Their shipbuilding industry, which also benefits from terrific natural harbors (fjords), is so big that a lot of the hulls for platforms in the Gulf of Mexico are built in Norway and transported to the US, despite higher labor costs and transportation costs.

Another way Norway was saved by the curse of oil? The fortuitous arrival of an Iraqi: The man who saved Norway. He pushed for a balance between resource nationalism and outright capitalist exploitation that would lead the people getting less than full value for their natural resources.

... if you rely too much on private foreign companies, too little of the oil wealth benefits the country in the form of government revenue or economic development; if you go too far in the other direction, you risk a bloated, politicised oil sector that evades both accountability to the people and competitive pressures to be efficient.

Very good read.

Also, instead of squandering oil wealth or it disappearing into the pockets of politicians, almost all the revenues go into the Government Pension Fund of Norway, which hoards most of the wealth for when the one-time endowment of oil is depleted. Norway Thrives by Going Against the Tide - NY Times.

I'll leave you with one more snippet about Norway:

This country beats France: Norway.

Wednesday, September 9, 2009

Kelly Johnson's 14 Rules of Engineering Management

One thing that I forgot to include on this post that I found pretty interesting was "Kelly Johnson's 14 Rules of Engineering Management."

In general: "Be quick, be quiet, and be on time."

The 14 Rules: (Via Wikipedia)

1. The Skunk Works manager must be delegated practically complete control of his program in all aspects. He should report to a division president or higher.

2. Strong but small project offices must be provided both by the military and industry.

3. The number of people having any connection with the project must be restricted in an almost vicious manner. Use a small number of good people (10% to 25% compared to
the so-called normal systems).

4. A very simple drawing and drawing release system with great flexibility for making changes must be provided.

5. There must be a minimum number of reports required, but important work must be recorded thoroughly.

6. There must be a monthly cost review covering not only what has been spent and committed but also projected costs to the conclusion of the program. Don't have the books 90 days late, and don't surprise the customer with sudden overruns.

7. The contractor must be delegated and must assume more than normal responsibility to get good vendor bids for subcontract on the project. Commercial bid procedures are very often better than military ones.

8. The inspection system as currently used by the Skunk Works, which has been approved by both the Air Force and Navy, meets the intent of existing military requirements and should be used on new projects. Push more basic inspection responsibility back to subcontractors and vendors. Don't duplicate so much inspection.

9. The contractor must be delegated the authority to test his final product in flight. He can and must test it in the initial stages. If he doesn't, he rapidly loses his competency to design other vehicles.

10. The specifications applying to the hardware must be agreed to well in advance of contracting. The Skunk Works practice of having a specification section stating clearly which important military specification items will not knowingly be complied with and reasons therefore is highly recommended.

11. Funding a program must be timely so that the contractor doesn't have to keep running to the bank to support government projects.

12. There must be mutual trust between the military project organization and the contractor with very close cooperation and liaison on a day-to-day basis. This cuts down misunderstanding and correspondence to an absolute minimum.

13. Access by outsiders to the project and its personnel must be strictly controlled by appropriate security measures.

14. Because only a few people will be used in engineering and most other areas, ways must be provided to reward good performance by pay not based on the number of personnel supervised.

Note that Kelly had a 15th rule that he passed on by word of mouth. According to the book "Skunk Works" the 15th rule is: "Starve before doing business with the damned Navy. They don't know what the hell they want and will drive you up a wall before they break either your heart or a more exposed part of your anatomy."

That last one could be broadened to state, 'don't work for a client that will get you in more trouble than it's worth.' There are a lot of engineering companies that deliberately avoid public sector work for that reason...

Tuesday, September 8, 2009

Floodgate Reports - The Bottom Line

I've had a couple of posts in the hopper while waiting on some last few pieces of information. I'm going to break into that info early, because I think it's important...

Two major levees-related news items today:

Analysis finds flaws in pumps at outfall canals. (Refers to M.W.I. Pumps)

Corps revises London Ave. Outfall Canal ICS operating procedures. The big news is that the safe water level has now been reduced so low (about 2.5 feet) that the pumps will now run during all major rainfall events.

What does this mean in the big picture?

The current setup was a temporary fix based off what the Corps could assemble as quickly as possible after the storm. (From Page 10 of Parson's Report)

The interim setup, even if every single pump operates flawlessly to its full design capacity, is only designed for a 10-year (UPDATE- "rain") event. We've heard many times how much of a joke the 100-year level is. The 10-year level is even weanier.

Pumping Station #6, which feeds the 17th Street Canal and is the main pumping station for the city of New Orleans, is capable of putting out a little over 10,000 cfs. That's an admitted shortfall of over 20% at that pumping station. In a big enough storm, water will begin to back up. In a short/lightish storm, the only thing that will probably happen is street flooding and maybe a few flooded cars. In a long-lasting/high-intensity storm, large parts of the city , especially Gentilly (drained by PS#3 & #4), Mid-City and Lakeview, will flood.

The parts of the floodwalls that failed were repaired quite thoroughly. The Corps rebuilt those parts with T-walls with ample foundations. But, the parts that didn't fail were left untouched. There's been a about what the safe water level for the Canals is. Each time the Corps has investigated, the walls have been derated. The walls SHOULD be rated to their top (a little over 10' elevation). Instead, they've been derated, especially on the London Avenue Canal, where they'll now close it at 2.5'**. There are currently no plans whatsoever to rebuild the walls or repair them in any way. The Corps says it would take too long and would take too much money and they'd rather get the permanent pump stations online.

If you were to sit the major engineering experts in the area down and ask them what the 3 most important projects are for New Orleans, I'll bet the lion's share would include the permanent pump stations at the mouths of the outfall canals. When the "10-year storm" standard was adopted (~ early 2006), the Corps was planning on having the permanent pump stations in place no later than 2010. Had they been replaced then, the 10-year storm standard may have been reasonable. Now, they're officially saying it will be complete by 2012, at the earliest. The Corps has picked up the pace, but it's looking more like it will be 2013 at the earliest before the stations are complete. The longer it takes for the permanent pump stations to be built, the more maintenance will be required and the more one should question the original design basis for the pumps.

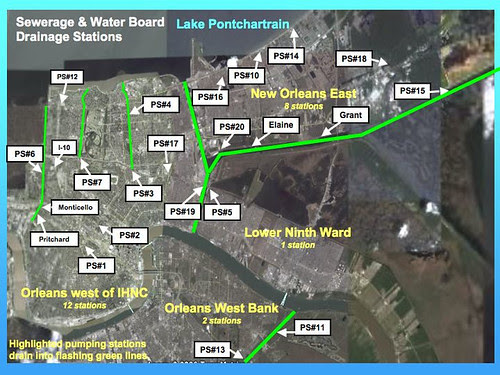

NOLA Pumping Stations
